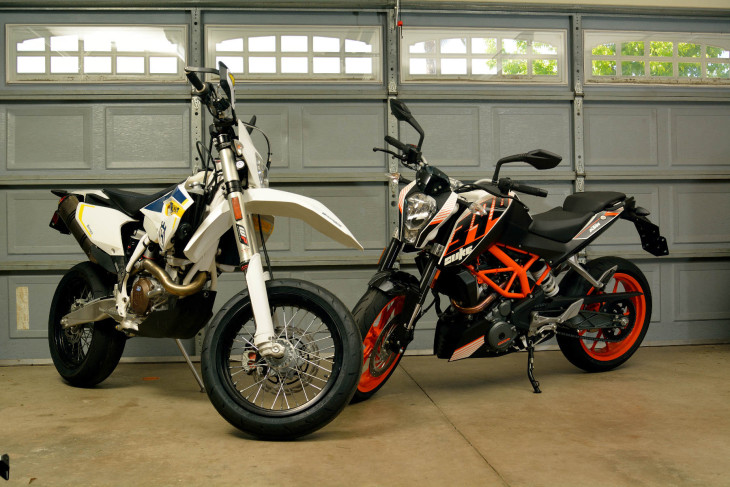

MD Tests Crazy Light Street Legal Singles – KTM 390 Duke Meets Tricked Out Husqvarna FE 501 S Supermoto, Part One

041315middle3

They say you only live once, and even if you get reincarnated you might come back as a cockroach. So go for it! Don’t worry about cost or durability. In this series of articles, we don’t.

We got tired of listening to our readers whine like babies about street legal, off-the-shelf motorcycles being unnecessarily heavy. So pay attention.

The heavier of these two bikes is the KTM 390 Duke ABS which, according to KTM, comes in at 306 pounds dry (more than 100 pounds lighter than a Yamaha R6!). I have paperweights heavier than that.

Oh, and that was the heavier of the two bikes we are currently flogging in the interests of enlightening the masses. The other bike is the focus of this initial report. A custom 2015 Husqvarna FE 501 S Supermoto. Okay, so this bike is not quite “off-the-shelf”, because Husky does not sell a supermoto in the United States. Our bike started life as a street legal dual sport weighing a claimed 251 pounds (more than 150 pounds lighter than a Yamaha R6). Some of the modifications undoubtedly remove weight, while others add some (such as the 17″ supermoto wheels, and big front disc brake). Our supermoto is still well under 300 pounds.

041315top2-i

SM2

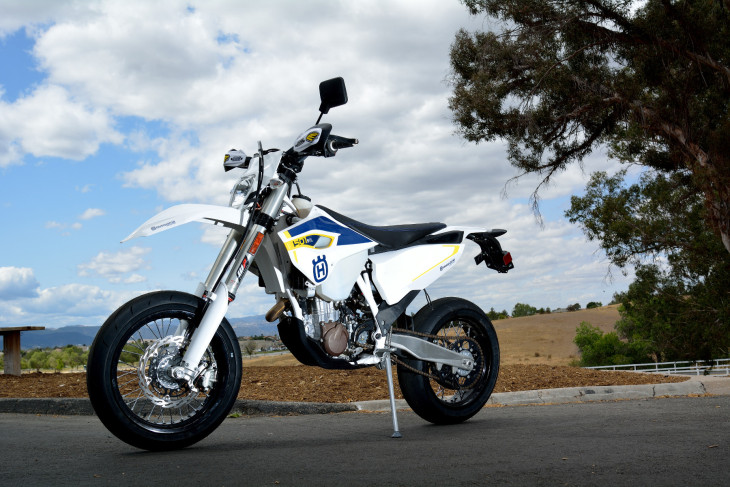

This first installment in the series focuses on our riding impressions aboard the Husky. Here is a list of modifications made to the bike (we will provide prices in a later article).

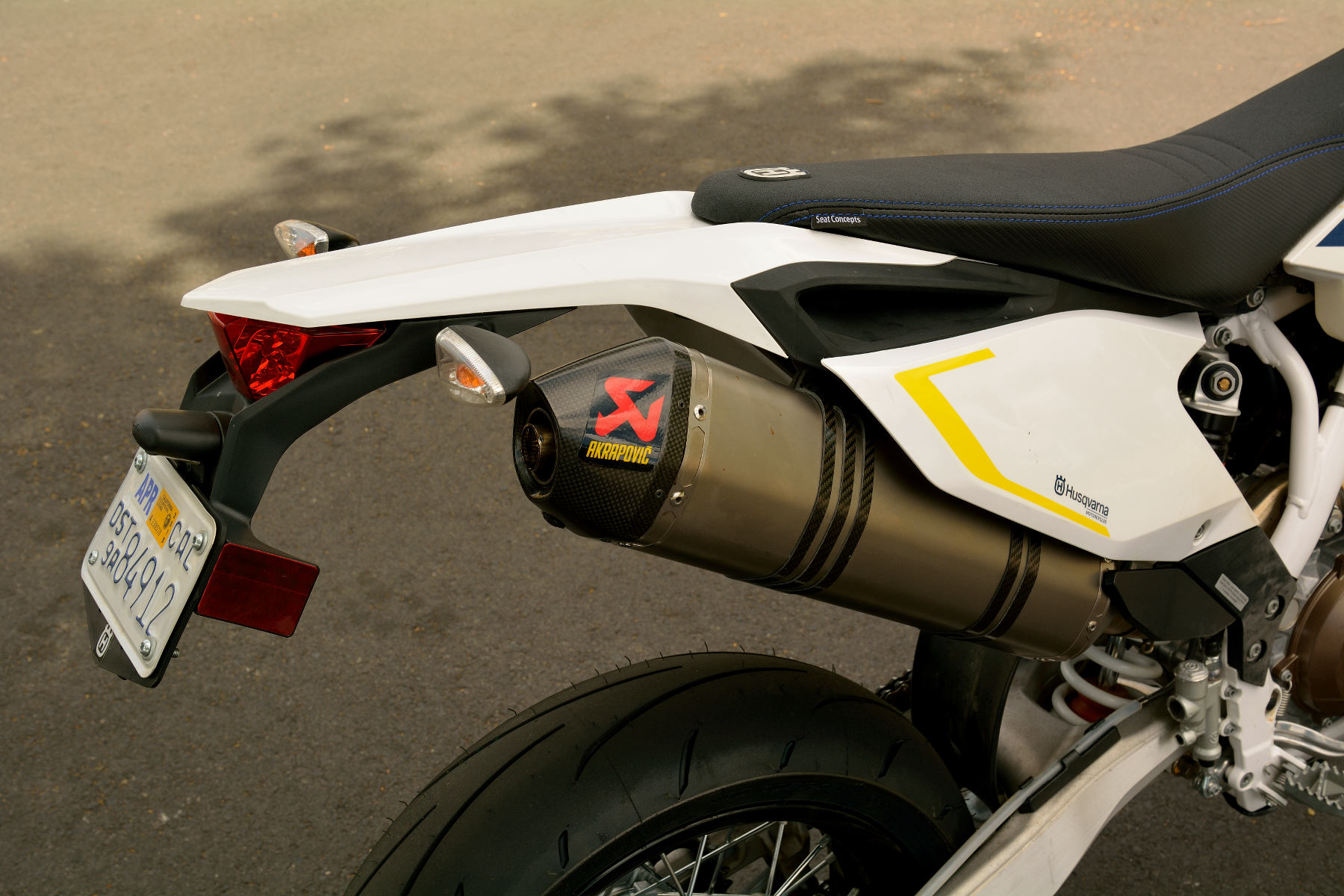

  1. Akrapovic street-legal muffler system.
  2. Cyrca hand guards.
  3. Seat Concepts seat.
  4. 17″ Supermoto wheel conversion with oversize front disc brake and caliper carrier (a future article will focus on the details of this particular feature).
  5. Dunlop Q3 tires sized 160/60 x 17 rear and 120/70 x 17 front.
  6. Modified gearing (one tooth down on the counter-shaft, and four teeth up on the rear sprocket).

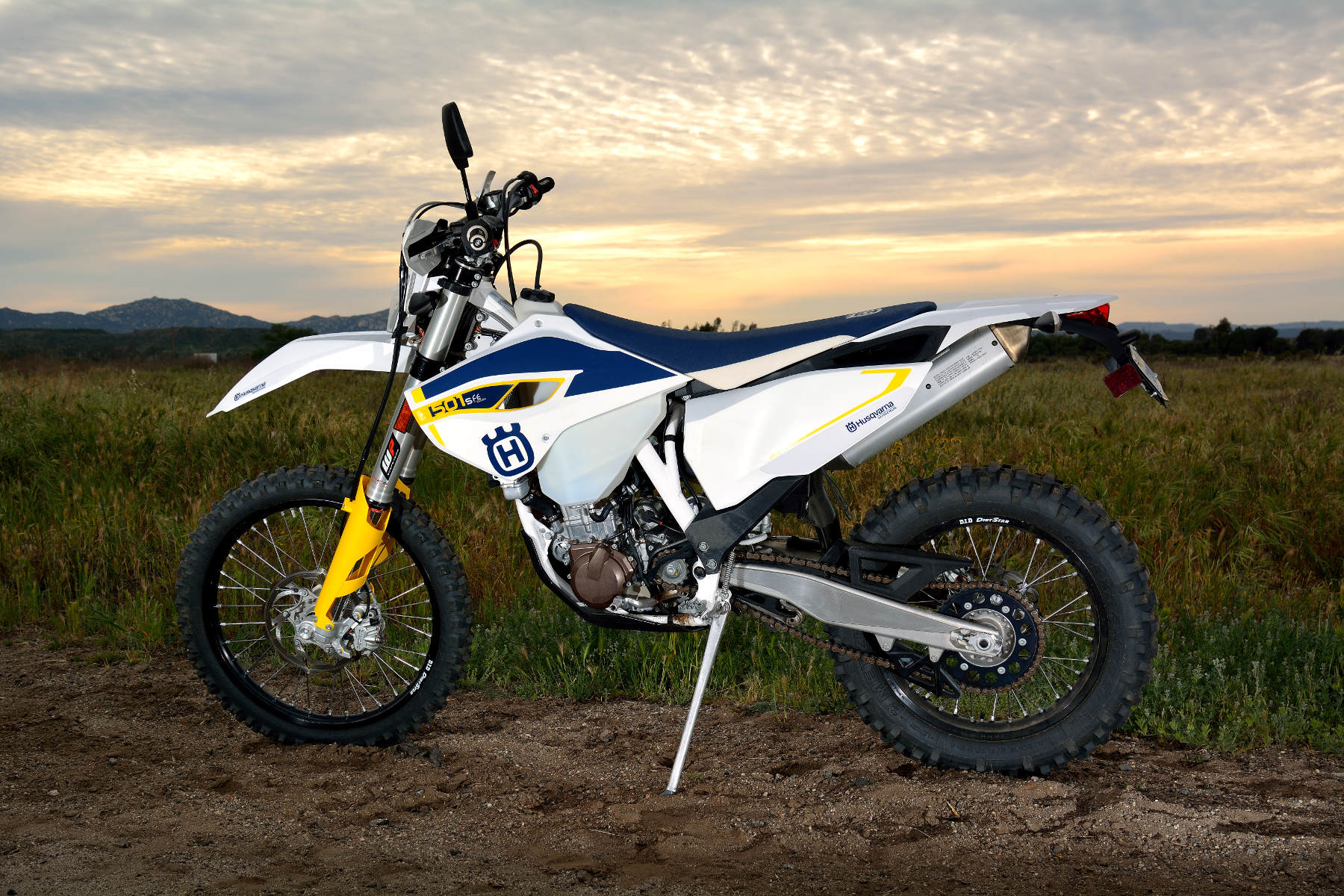

We can begin by confirming that the FE 501 S is a very capable dual sport. It shares components with the FE 350 S we tested earlier. As we stated in that earlier review, the stock seat and tires are very dirt focused. The stock seat is quite uncomfortable for even moderate length trips on road, and the tires are more suitable for deep sand than hard-packed soil or the street. A picture of the FE 501 S in stock form can be found at the very bottom of this article.

Riding the FE 501 S convinced us we wanted to try it in supermoto trim. The 510.4 cc engine is simply fantastic, offering strong low and mid-range power with a very healthy pull through the upper rpm range. The stock bike has extremely tall gearing, that has the motor barely purring at 75 mph. We didn’t dare test top speed on the stock knobby tires, but it must be well in excess of 100 mph.

We asked Husky if they would build a supermoto version of the 501 for us, and they actually said yes! Husky provided all of the modifications described, including the razor blade taken to the left lip of the rear tire (permitting chain clearance). Don’t try this at home.

041315top-i

041315middle1

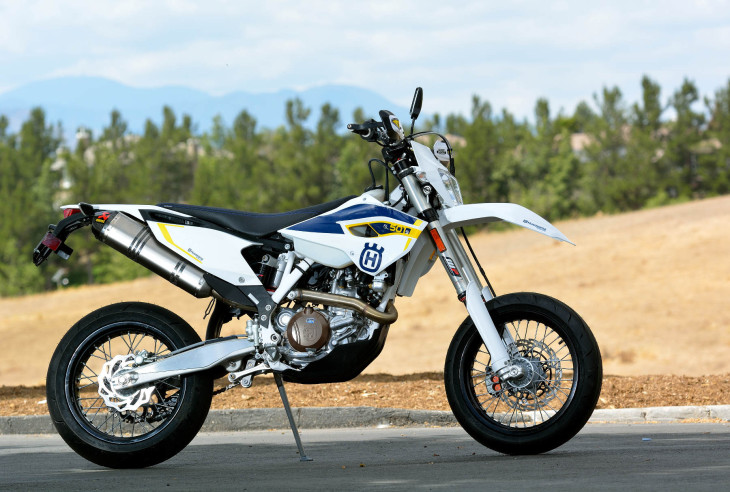

The first concern we had with the modified bike was steering geometry. Although the diameter of the rear Dunlop street tire is not radically different from the diameter from the 18″ knobby it replaces, the new 17″ front hoop drops the front end considerably compared with the 21″ wheel that comes stock. We knew the street rubber would handle much more aggressive steering geometry, and the steeper rake would be welcome, but we thought it might be too much. We were wrong. Thankfully.

Somehow, the steering geometry with the unmodified FE 501 S suspension turned out great. Balance feels good. Turn-in is excellent, and straight line stability at high speed is also good. Bravo!

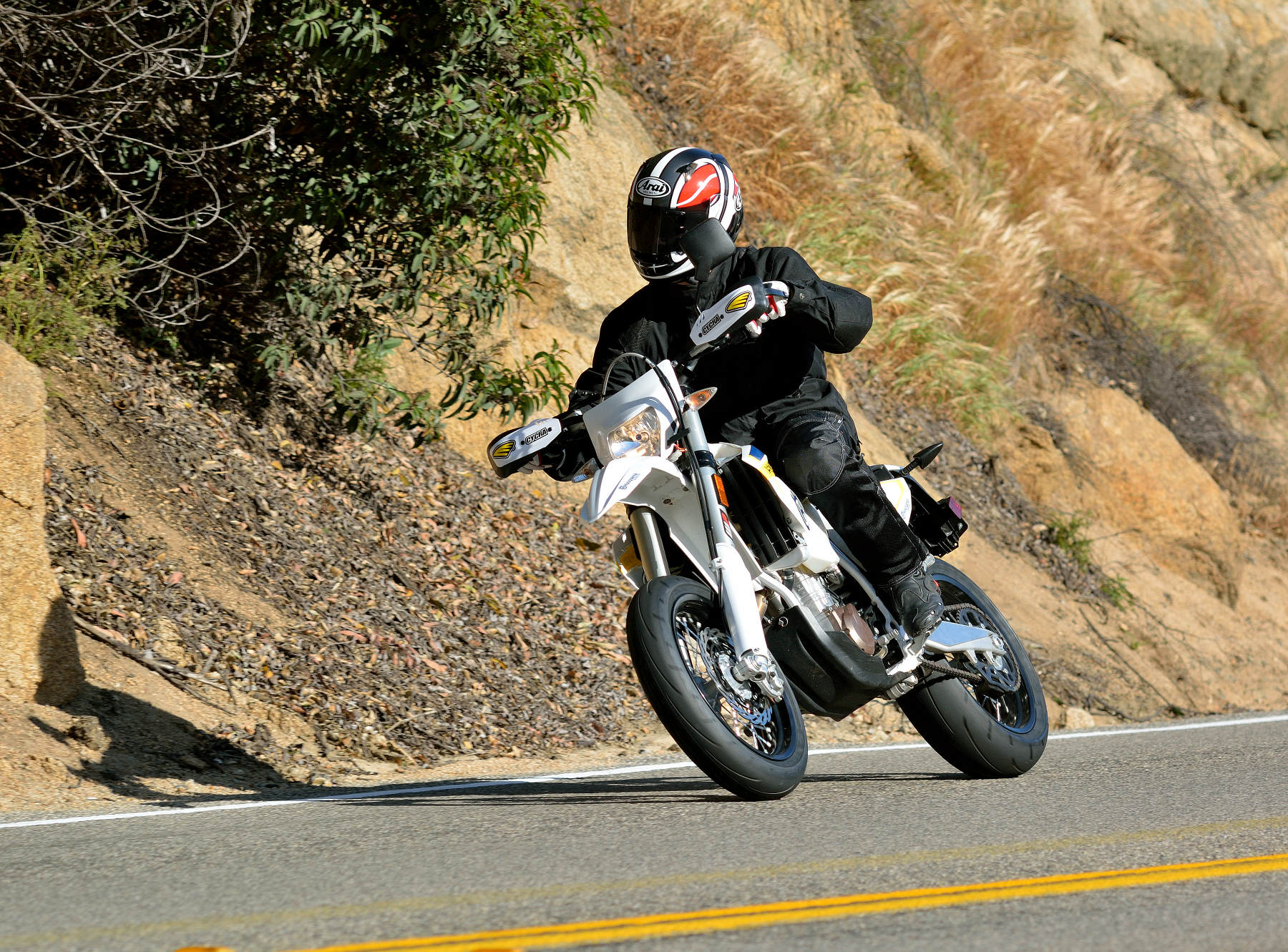

Riding the big Husky supermoto is exhilarating, to say the least. In the city, this bike rules. Hardly any other way to say it. It pulls smartly away from stop lights with the front wheel in the air (if you wish), and the seating position gives the rider a great perspective on traffic. Slice-and-dice everything you see in town.

The larger front brake disc (now 280 mm) seems to offer plenty of power and feel. The stock caliper is held further from the hub by a stiff, billet extension piece.

041315middle2

The lower gearing and change in tire diameter has significantly reduced top speed, although the modified bike is still capable of 85 mph+, and easily keeps up with highway traffic. The trade-off is better in-gear acceleration.

SM7

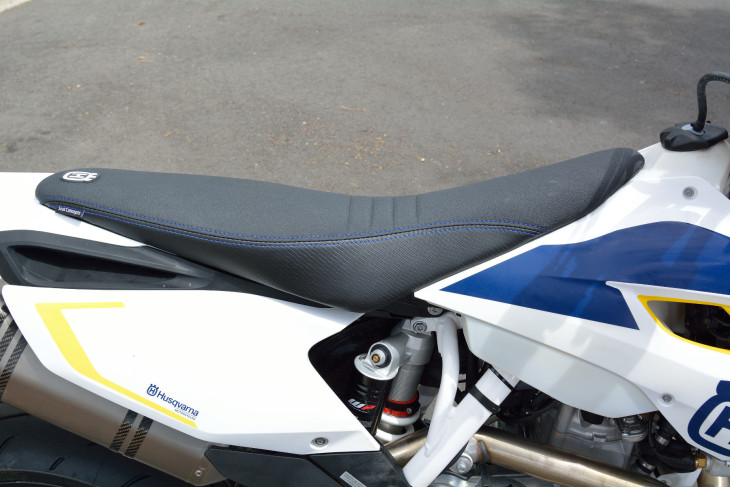

The Seat Concepts seat bolts right on and looks perfect … fit and finish is equal to the stocker. Comfort, on the other hand, is worlds better than the plank that comes with the bike. Both short and long rides are far more tolerable.

We ran the Dunlop Q3s at 27 psi, both front and rear. This seems right in the ballpark for these tires on a supermoto weighing less than 300 pounds. After we scrubbed in the new rubber, corner grip and confidence were fantastic. With the dirt bike ergonomics and wide bar, throwing this bike into corners is something you have to experience to fully understand. Even more nimble than the 690 Duke we tested and raved about.

We left the suspension with the stock settings, and it worked well, but we are still experimenting. We would like the suspension a bit tighter and more controlled.  We will report back with our findings.

This is not a long-distance tourer, and not even the most practical commuter bike. This is a hard core race bike that happens to be street legal. Vibration levels are tolerable, and not bothersome on shorter rides, but they will take their toll on longer rides. Nothing is rubber mounted on this bike, not the footpegs or the handlebars. You want light weight? You pay the price.

The six-speed transmission provides a nice spread of gearing, tightened considerably by the final drive changes we made. We have experienced no problems with missed shifts, and we believe the rear wheel hub provided by Husky incorporates cush drive, nearly a necessity on the street.

This bike is all about fun. You can get stupid on this machine – jumping curbs, pulling wheelies, and floating jumps (both concrete and dirt). The bike, perhaps unfortunately, encourages this. But even without riding  beyond the PC boundaries set by modern society, this bike can make you grin so hard your face might break.

Stay tuned for our story on the KTM 390 Duke, followed by an article comparing the experiences offered by both machines.  By the way, the Husky we tested is quite expensive, as you might guess. The stock FE 501 S is priced at $10,249. The cost of the modifications to our supermoto version are significant, and will be the subject of a separate article on the process of modifying the dual sport. Take a look at Husky’s web site for more details and specifications.
