2017 Yamaha FZ-10: MD First Ride

072216top-i

072216side1

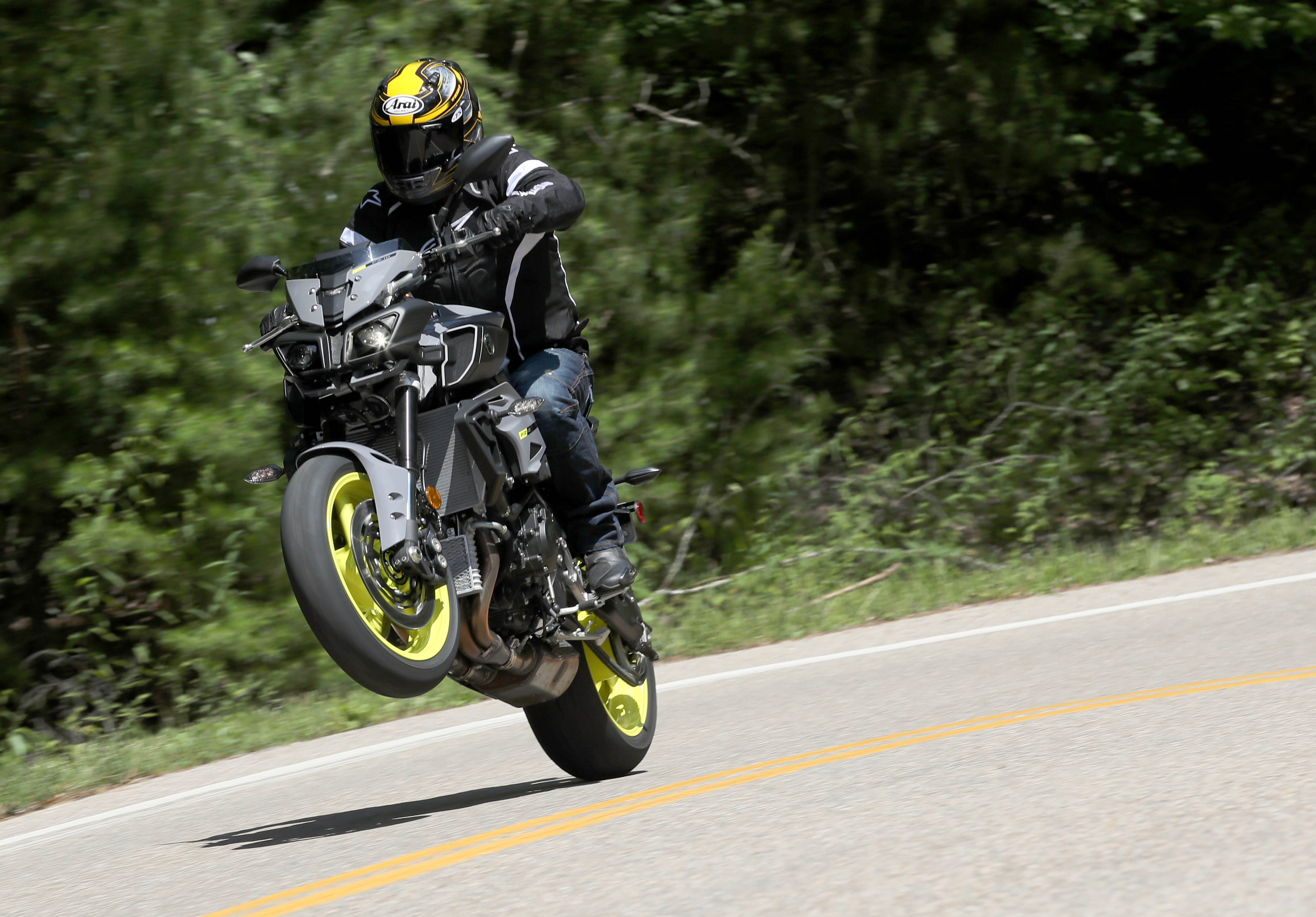

The much-anticipated 2017 Yamaha FZ-10 has arrived on U.S. soil and Motorcycle Daily was among the first wave of journalists to swing a leg over this bad boy.

Yamaha chose to introduce its flagship model for the popular FZ line with a 170-mile ride along the Blue Ridge Parkway in North Carolina, intending to showcase its handling prowess and comfortable ergonomics. With the 318-Turn, 11-mile long Tail of the Dragon included in that route, we were guaranteed the opportunity to put the FZ-10 through its paces, and get a real feel for what this bike is capable of.

Since we previously went through the 2017 FZ-10 technical details, you won’t be forced to sit through that entire play-by-play again. But we do need to give you the basic run down. Everyone is aware that the big FZ is based on the wildly popular YZF-R1 so here’s the list of notable shared components.

Starting with the chassis; the FZ is built around the same Deltabox Aluminum frame and swingarm with fully adjustable KYB suspension front and rear, rolling on 5-spoke cast aluminum wheels equipped with 320mm rotors slowed by 4-piston radial mount calipers. Two minor differences are the FZ runs a Brembo master cylinder, and has a steel sub-frame that holds the more comfortable, passenger-friendly seat.  Yamaha says it is strong enough to hold both a passenger and the optional OEM luggage if you see fit to do some touring somewhere down the line.

The Crossplane engine and 6-Speed transmission base configurations are identical to the R1. Everything from the 998cc displacement, firing order, bore (79.0mm), stroke (50.9mm), valve angle, exhaust valve size, YCCT-FI system, slipper clutch as well as the gears in the tranny are all the same. But the FZ engine has an assortment of changes intended to make it a better street bike.

072216-3

At the heart of the mods are a revised intake port, lower duration cams, forged aluminum pistons, 31mm steel intake valves (versus 33mm Ti on the R1), plus a heavier crank and new steel fracture split connecting rods. These changes result in a lower 12,200 rpm redline (The R1S by contrast redlines at 12,500 rpm, the R1 with its lighter internals spins to 14,500 rpm) and power that arrives much lower in the rev range, while retaining that unique R1 engine sound. The valve adjustment intervals change accordingly from 24k to 26.6k for those who like to eek out every mile between services.

The FI system on the FZ features large, single 12-hole injectors rather than paired smaller injectors, a larger 12 liter airbox (versus 10.5 liter on the R1) and of course, revised FI mapping to make it all work in harmony. The goal was to bring the usable power into the street-friendly 6000-9000 rpm range, which means power comes on roughly 2000-4000 rpm sooner than the racetrack oriented R1.

So, what does this all mean to the rider? The new FZ-10 has some serious, meaty mid-range for you to play with. We will have to wait to confirm the horsepower and torque numbers on a dyno, but Yamaha claims it will crank out a healthy 81.9 lb ft of torque and the Euro mags are reporting 160 horsepower. Regardless of what the numbers will be, this engine is tailored for low end, even featuring a shorter final drive of 43/16 versus the taller 41/16 on the R1. The result is a motorcycle that feels quick and eager whether you accelerate from a stop or crack open the throttle while rolling down the road.

On the Parkway that mid-range power was on full display. Unfortunately, with the low speed limit, and our group of journos being the law-abiding citizens our moms taught us to be, we never got out of first gear or went over 32mph all day, and certainly never tried to wheelie. We also got passed by a lot ultra-wide-dyna-glides and a few Vespas too! Just kidding … we hauled ass the entire time and loved every minute of it. I’m just happy to have made it home without any tickets, because this bike is so easy to ride fast.

072216middle1

072216side2

If we haven’t conveyed the message so far, here goes: The FZ-10 is a true hooligan bike. It wheelies on its own in the first three gears when the tach sweeps past 6000 rpm, so it was all smiles getting into, and out of, every turn. It reminds me of the big-horsepower, liter bikes from a decade ago thanks to its smooth, mid-range, punchy acceleration. And that was my feeling in Standard (STD) Ride Mode.

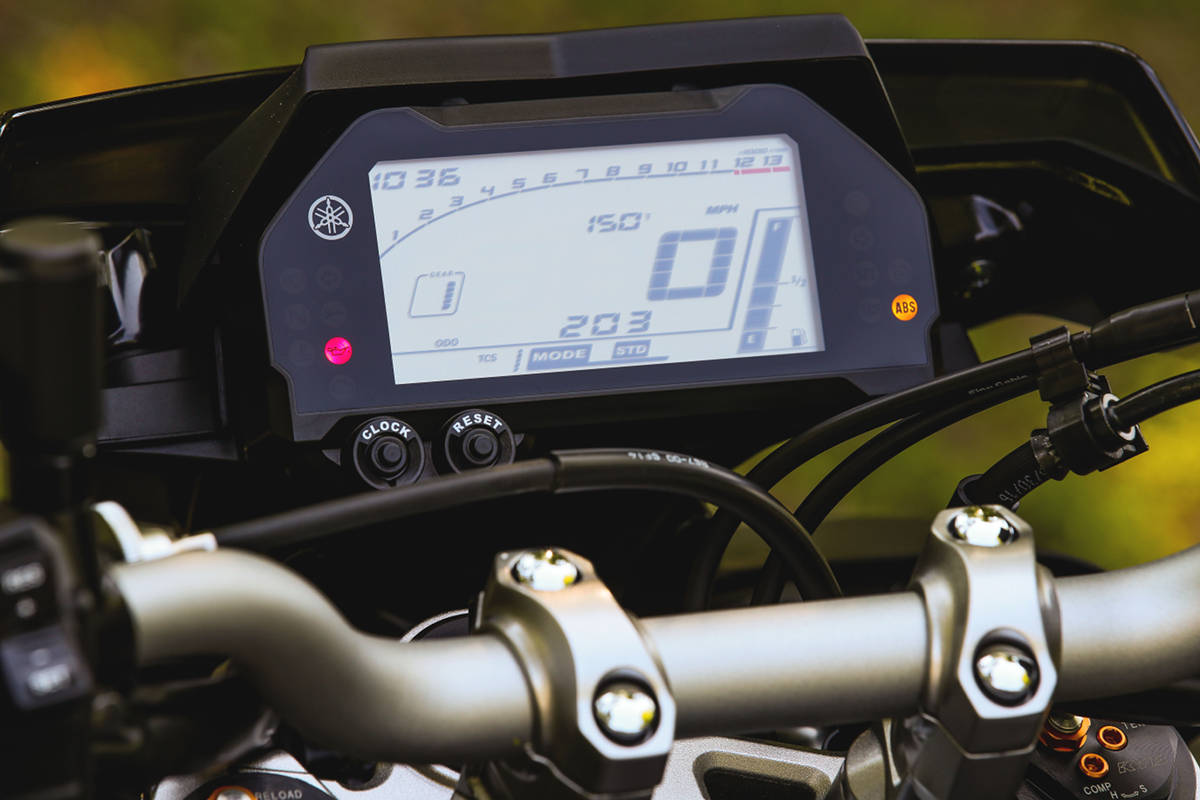

Now, it’s not every day that anything to do with the term “STD” makes you happy, but on the FZ it was the setting of choice. It’s funny because A-Mode is slightly more aggressive than STD, while B-Mode is even more-snappy off the throttle than A. You read that correct, B-Mode offers the most immediate power delivery, but the side effect is it feels a little abrupt — so I didn’t feel as smooth in my off-on throttle transitions.

Basically A&B increase the rate at which the throttle opens via the YCC-T so it doesn’t increase horsepower, it just opens the throttle quicker. The bike retains the setting you chose, even after you stop and restart it. If you take an FZ-10 to the track, I predict A-Mode battling B-Mode for superiority based on your throttle control skills and track conditions, but on the street the standard setting reigns.

072216-1

It shouldn’t be a surprise that the R1-derived brakes are very good, as well. Since the FZ-10 weighs in at a claimed 460 lbs. wet, compared to 448 lbs. for an R1S, you can expect similar braking performance. More than a few times, we found ourselves wide-eyed and on the brakes hard as we approached a corner a bit hot. Time and again the brakes and chassis were fully capable of trailing deep into the Dragon’s coils as we scrubbed off speed without issue.

This shouldn’t be a surprise since, as we mentioned earlier, the chassis, suspension and brakes are straight off the R1 … and don’t think for a minute that knowing there was a traction control system on-board wasn’t comforting. Pundits will be quick to point out that this is not the state-of-the-art, fully electronic version found on the R1 series, but honestly, is that a deal breaker? The FZ-10 uses the tried-and-true TC based on measuring crank and wheel speed to determine when to cut the engine, while the high-tech version (on the R1 models) cuts the throttle. Try as I might, we never felt the TC intervene, and that’s what I like in a TC-equipped bike.

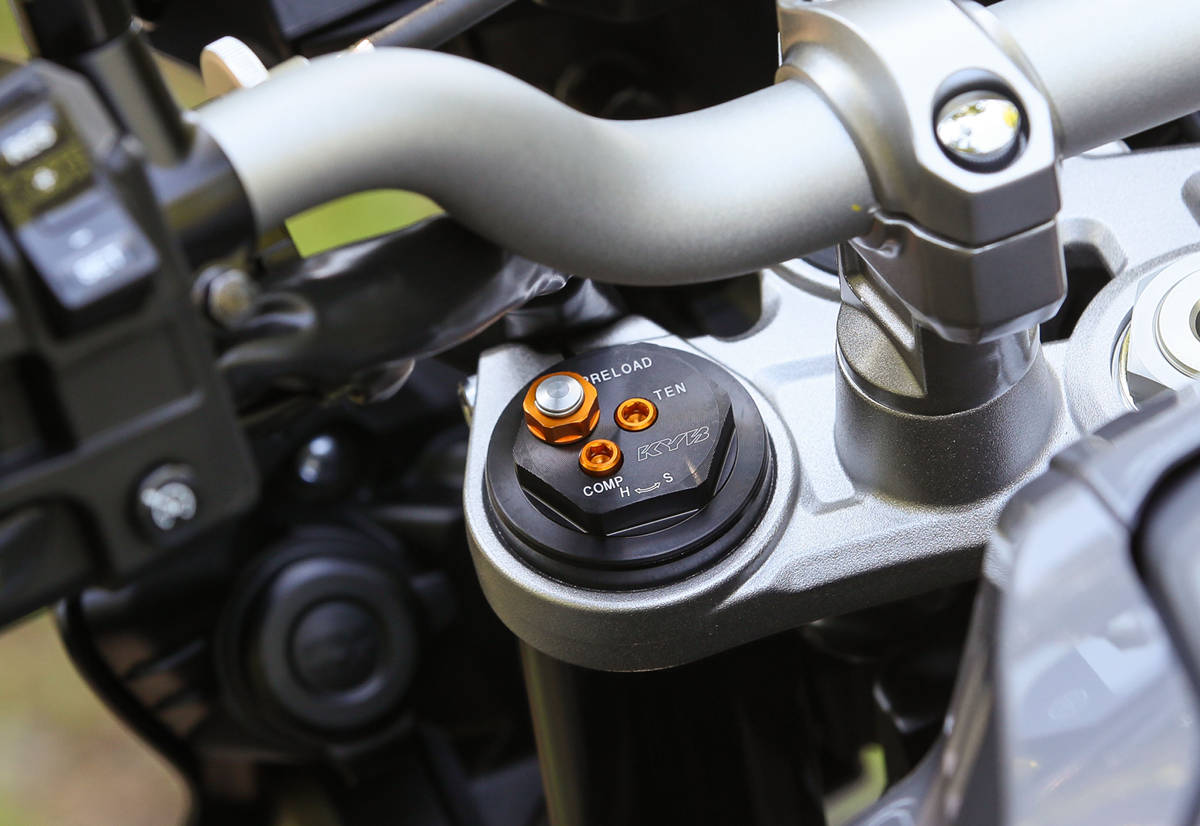

Yamaha has engineered the FZ-10 to go fast while providing incredible feedback to the rider, which it does. Fortunately, the stock Bridgestone Battlax Hypersport S20 tires are up to the task, as well. The S20s provided great grip and feel all day, and even looked good (no tearing) when we got back to the hotel. Pretty impressive considering the amount of torque we repeatedly sent through the rear contact patch.

072216middle2

072216side3

There is no doubt the FZ-10 will make a lot of friends, not only because its fast, but because of its comfort. The suspension is plush as the settings are intended to soak up bumps on even the roughest highways.

For the most part, the routes we rode were well maintained, but the 11-mile Tail of the Dragon is abused in spots, scarred up and with plenty of sharp elevation changes. The KYBs were definitely getting a workout on that road, but kept things smooth and controlled.

Additionally, the riding position is designed to keep you upright and comfy. It shares a similar rider-friendly triangle as the smaller members of the FZ-series, so if you’ve ridden one of them the FZ-10 will feel like a familiar pair of boots. The bars are high enough to take weight off you wrists, but low enough to facilitate an aggressive stance when you feel the urge to let your knee pucks drag on the ground. The shape of the seat doesn’t push you into the tank, and the robo-faced front fairing and tiny windshield actually deflect a reasonable amount of wind.

Switchgear is laid out in a thoughtful manner with the Cruise Control, Traction Control and Drive Mode switches easy to manipulate on the fly. The LCD dash is full of information, including a Gear Position Indicator, fuel gauge, fuel economy, TC setting, Drive Mode setting, reserve trip meter, dual trip meters … and the list goes on. Yamaha spent a great deal of effort getting the cockpit of this bike to work well for the rider, and it shows.

072216-2

It has a big 4.5-gallon fuel tank, but, unfortunately, I didn’t do a good job of keeping track of the mpg on this ride, so we’ll have to wait to see what type of range to expect.

Finding fault with the FZ-10 wasn’t particularly easy without riding it back-to-back with the competition. Nevertheless, I do have some nits to pick.  The engine, while very smooth, does transmit some buzz when you’re droning at highway speeds (like virtually every other in-line four). Most riders won’t give a rip, and I know it was far from a deal breaker for me. The cruise control works in the top three gears only, at speeds over 30 mph. Other than that, its excellent in operation. The LED running lights look faint in the daylight, but the blinkers and brake lights are very bright.

Last, but not least, the mid-range power this bike makes is impressive, but it lacks a big top-end rush. I made it a point to run it high into the rev ceiling and it falls a bit short on top. Again, did I care while riding it? Not really. Will someone who is a power hungry, ham-fisted speed freak find fault in it? Maybe. I’d say short-shift the bike and you’ll be a happy camper. If you want lots of wailing top-end horsepower, then this isn’t your bike. If you like being comfortable, and ripping up roads with loads of power available at street-level revs, then do yourself a favor and swing a leg over the new FZ-10.

072216-4

After 250 miles of hard riding on the FZ-10, we are convinced that it is going to give the current open-class street fighters and naked bikes (or whatever they’re called these days) a run for their money. There are certainly bikes with more power, but, realistically, that isn’t an issue for most riders when it comes to open-class machinery these days. With an MSRP of $12,999 and similar performance numbers to the majority of the bikes in this segment, the big FZ should be able to lure buyers with its character rich engine (love the unique sound and feel from the Crossplane crank!), great chassis and adequate electronics package – plus it looks unique.

Those folks who are enamored with the lines of the naked Euro-bikes, might not dig the Transformer-esque styling of the FZ-10, and Yamaha is OK with that. As far as I am concerned, this motorcycle looks cool, handles even better and has an engine with both character and impressive performance.

The bottom line is that Yamaha has now joined the somewhat crazy category populated by huge-horsepower Nakeds here in the United States. If you are drawn by its admittedly polarizing styling, we are confident you will find a bike with all the chassis and engine performance any sane human can use on the street (although, we know some of you are insane). Surprisingly comfortable, the FZ-10 isn’t just a track-focused weapon. It’s a bike you could happily ride every day while commuting, doing light touring or shredding canyon roads.  Take a look at Yamaha’s web site for additional details and specifications.

072216bottom
