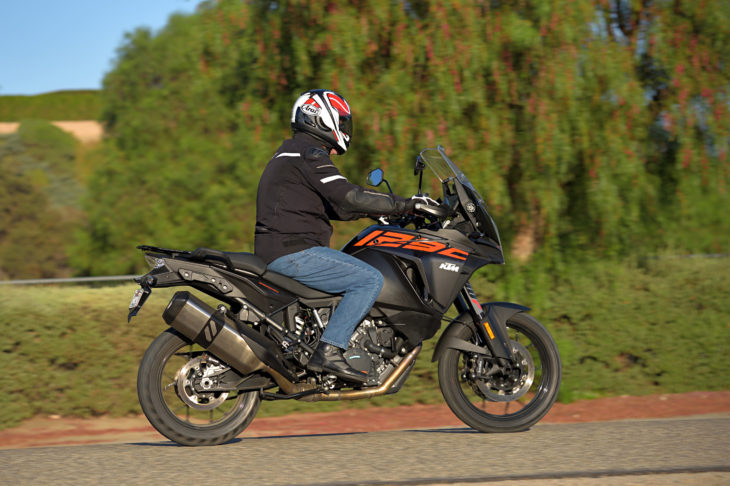

2018 KTM 1290 Super Adventure S: MD Ride Review


We get to test some pretty amazing motorcycles these days here at MD. How much horsepower do you want? The market is full of motorcycles that can satisfy even the most committed adrenaline junkies. Want a bike that handles well? Modern chassis, suspension and tire technology allow a good rider to exceed cornering speeds and forces dictated by the law and common sense. Comfort is your thing? This is an era where upright, comfortable ergonomics are not only common, but receiving of significant R&D efforts from major manufacturers.

But what about a bike that combines all of these things? That remains relatively rare. We got our hands on one a few weeks ago … the 2018 KTM 1290 Super Adventure S. With a 1,301cc , 75° v-twin engine making a claimed 160 horsepower and 103 foot/pounds of torque, together with a bolt upright seating position that surpasses the comfort of some dedicated tourers, the basic ingredients are present for something special.

The new Super Adventure S includes WP semi-active suspension components (including a massive 48mm upside-down fork) controllable in the minutest detail by the rider from handlebar switches, superbike-caliber, radial mounted, four-piston Brembo brake calipers squeezing two 320mm front discs, and, according to KTM, “the most advanced electronics in the world of motorcycling.” What does this phrase mean?

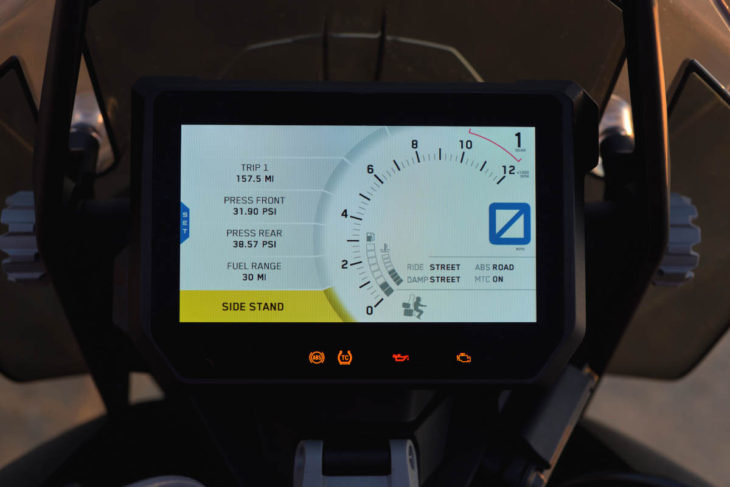

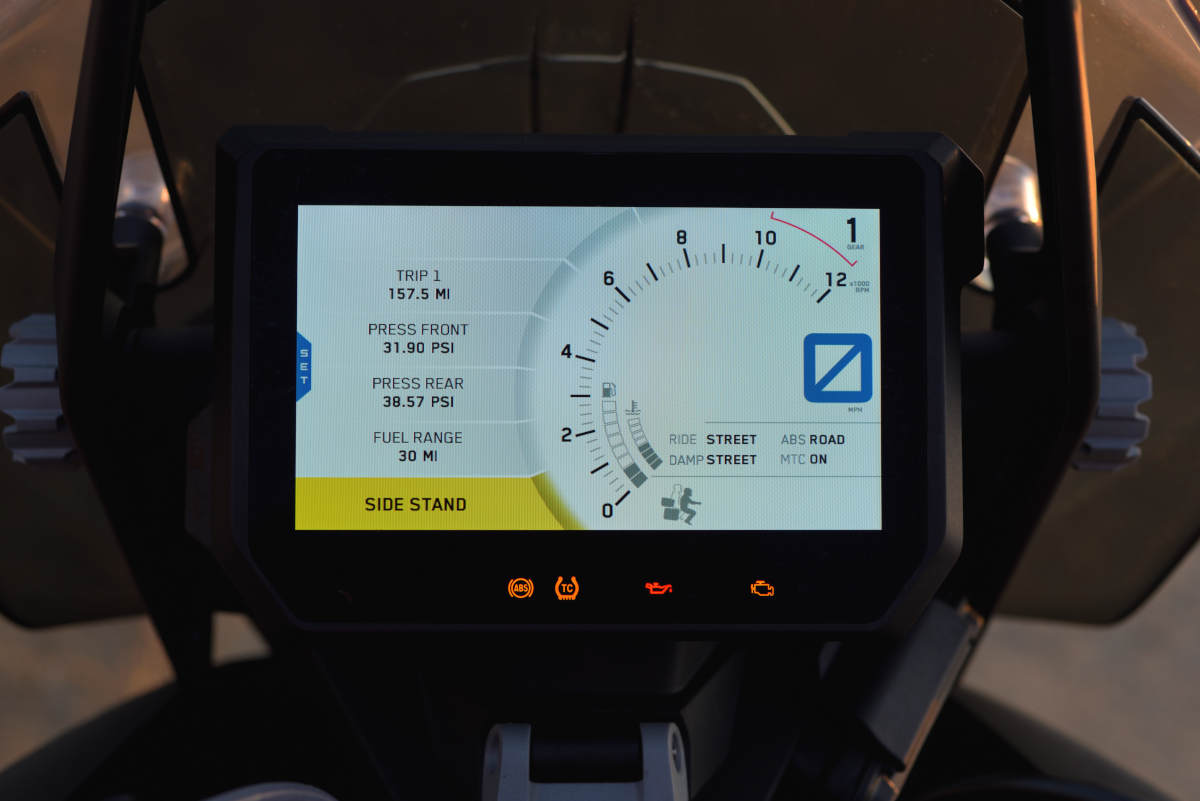

According to KTM, the “most advanced electronics” includes the Super Adventure S package of selectable riding modes (Sport, Street, Offroad and Rain), Motorcycle Stability Control (multi-mode, lean angle-sensitive ABS and traction control) and WP semi-active suspension with four damping settings (Sport, Street, Comfort and Offroad) and push button- adjustable rear preload.  With the brains and sophistication of Bosch helping out, KTM has been developing, and using these types of electronic aids as long as anyone.

Tires are tubeless Pirelli Scorpion Trail II sized 120/70-19 front and 170/60-17 rear mounted on cast aluminum wheels. Despite the 19″ front, this is primarily a street bike with relatively modest off-road capability compared to some other KTM adventure bikes. Those tires support a relatively big machine weighing roughly 535 pounds with the generous 6.1 gallon fuel tank topped off (we averaged just under 40 mpg – for a range of well over 200 miles). Seat height is adjustable between two positions, including 33.9 and 34.4 inches. The windscreen is manually adjustable (without tools, easily at a stop light) over a 2″ range. Hand guards and heated grips are featured.

The 1290 Super Adventure S also allows clutchless shifts (both up and down), auto-cancelling turn signals, a key-less system for ignition and fuel cap (just keep your fob close) and a USB charging port.

The KTM “My Ride” bluetooth system, together with a smartphone app, offers control of phone calls, music and navigation while riding. All of this information shows up on the beautiful, bright and high-contrast TFT display, where you can also intuitively scroll through all of the electronic aid options.


Whew! … I hate describing all of this electronic crap on these new bikes! At the same time, over time, we have come to appreciate their usefulness. Do you remember when you told yourself that YOU, Mr. Experienced, Skilled Rider, could out-brake an ABS system? Well, now, we have a 160 horsepower adventure bike that you can practically throw on its ear in a corner and power out on that relatively tiny rear contact patch with more than 100 pounds/feet of torque … and I thank KTM for that Bosch wizardry that prevents me from high-siding my tired, old body into oblivion. This stuff works on this bike seemlessly, and we couldn’t enjoy this kind of power, and handling, with the same level of confidence without it.

Of all the wonderful things about this bike (read on), the v-twin engine is the star. A smaller, less powerful version was found in MD’s Bike of the Year back in 2014, the KTM 1190 Adventure. As you might expect, we fell in love with our BOTY that year, and the new 1290 Super Adventure S surpasses that bike in several ways.

Now displacing 1,301cc, this big, comfy bike provides acceleration (particularly in Sport mode) akin to the amazing 1290 Super Duke R we tested when it was introduced back in 2014. One reason why this bike feels so quick is the fact that the power is available at streetable rpm levels. The torque delivered by the Super Adventure S at 4,000 rpm is likely higher than the peak torque found on the fastest motorcycle you have ever ridden … think about that for a minute. Torque peaks at a relatively low 6,750 rpm, while you will hit that 160 horsepower peak at less than 9 K. By contrast, superbikes are hardly awake at these rpm levels.

Despite the dual-sport rubber, the KTM 1290 Super Adventure S grips like glue on dry tarmac (the only venue for our testing). Most 19″ front tires are 110 mm wide, but this bike has one of the newer 120 mm tires for higher grip levels on the street. We had no trouble keeping up with, and even outperforming dedicated sport machinery on twisty roads aboard this bike (rider skill level variances notwithstanding).

All the while, the big KTM cossets you with a generous, relatively stretched out rider triangle. The seat is quite firm, but we found it comfortable on longer rides where the extra support is appreciated.  The seat shape allows the rider to move around a bit … also a contributor to comfort.

This is a tall bike, even with the shorter of the two seat heights selected, and our 5’11” test rider was tip-toeing at stops. Some shorter riders may simply find the bike too tall, while taller riders will appreciate the added leg room.

We kept the suspension dialed to Sport or Street, finding the Comfort setting a bit too soft and sloppy for even moderately aggressive riding. Nevertheless, we found the supension excellent overall, and the setting changes selected by the rider at the handlebar make a real, discernible difference. Within any particular setting (Sport, for example) you can change the rear ride height and the overall damping characteristics. Moreover, KTM’s menu system makes this easy and intuitive … without reading the owner’s manual (who likes to do that?).

Clutchless shifts work pretty well with the KTM Quickshifter System, but we didn’t use it as much as we should have, perhaps, due to decades of muscle memory requiring us to flex the left hand while riding. That beautiful TFT instrument display is state-of-the-art and makes traditional displays look dull and hard to read.

The brakes, clutch and transmission performed their job at a level consistent with the rest of this remarkable machine. The brakes are extremely powerful with good feel and modulation. Our only complaint would be excessive engine heat felt on the legs during stop-and-go riding, which is something potentially more problematic in hotter climates.

The 2018 KTM 1290 Super Adventure S is a remarkable motorcycle and a worthy successor to MD’s 2014 BOTY, the 1190 Adventure. It is not an inexpensive bike to buy at an U.S. MSRP starting at $17,999, but, in our opinion, it is a bargain compared to any competition that offers this level of comfort and sophistication (the competition, in general, doesn’t offer this level of power and handling performance). We can’t comment on long-term reliability, but we understand that KTM has been making significant strides in that area, and its current production models are generally well-sorted for the long haul.  For full details and specifications, including available color schemes, visit KTM’s web site.
