Husqvarna Introduces Production SVARTPILEN 701 and VITPILEN 701 AERO Concept (with video)

Long version:

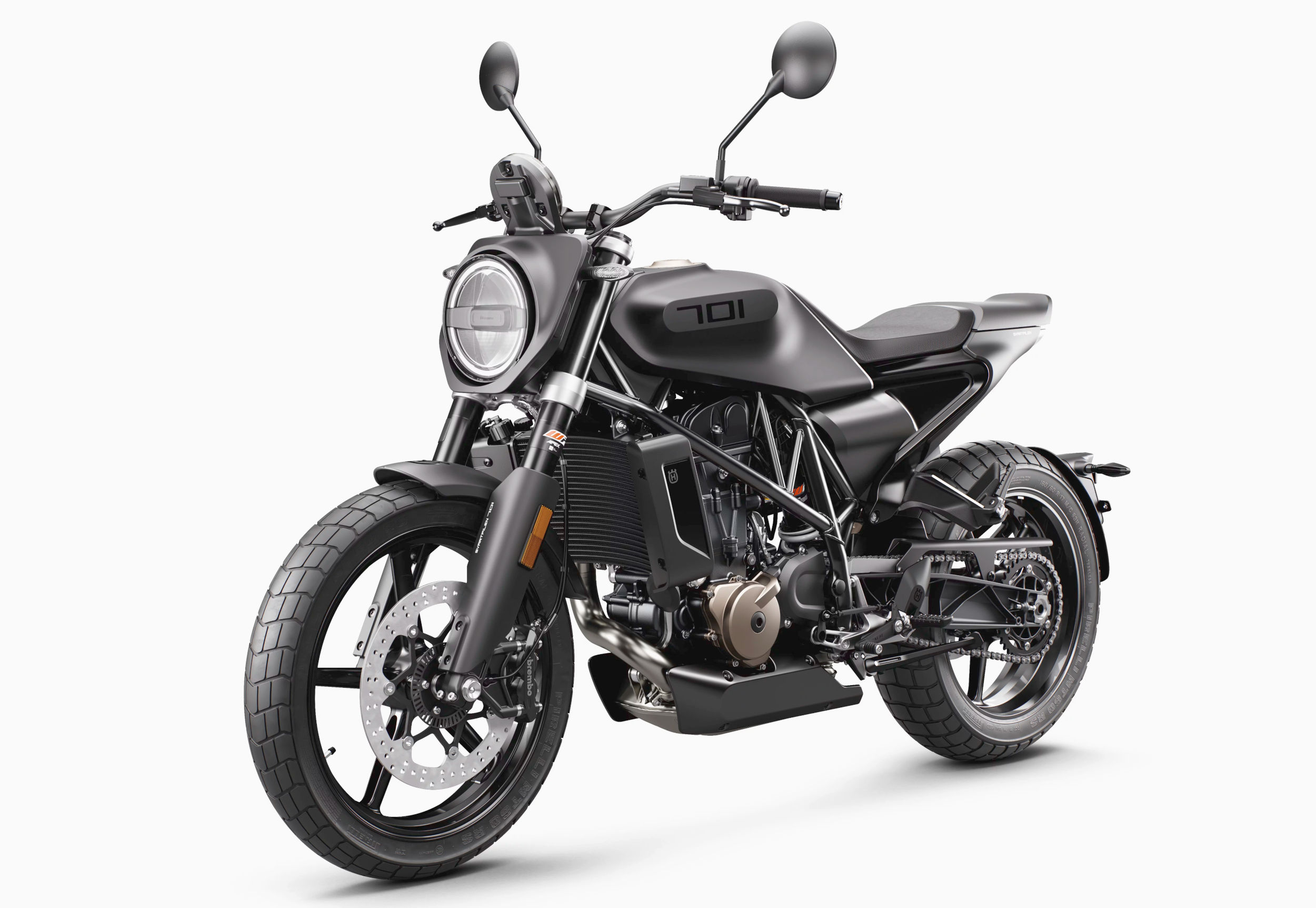

The SVARTPILEN 701 street explorer is free of excess and reduced to its simplest form. This bike aims to appeal to an entirely new generation of motorcycle users. It’s for those less interested in the hype and hyperbole of modern day motorcycling, who prefer a simpler, timeless design approach. Its technologically advanced, 4-stroke, single-cylinder 692.7 cc engine is housed in an incredibly stripped-down layout that offers excellent performance. Although its design is inspired by the resurgence of the iconic flat track scene, this is a progressive motorcycle that doesn’t need to be pigeon-holed or categorized – it just needs to be ridden. It is so simple and obvious that just by looking at it, any freethinking rider should know exactly what it is intended to do. Ultimately, it’s as approachable as a motorcycle can be, it’s honest and is there to be ridden by anyone seeking to RESTART THEIR FIRE through the raw and exhilarating experience of riding a motorcycle.

SVARTPILEN 701 MY19 TECHNICAL INFORMATION

HIGHLIGHT FEATURES:

  • Progressive design
  • Chromium-molybdenum steel trellis frame
  • Powerful single-cylinder engine
  • Premium components as standard
  • Ride-by-wire throttle
  • Cutting edge, switchable ABS
  • Slipper clutch
  • Up/down quickshifter
  • Extensive range of Husqvarna Accessories

FEATURES AND BENEFITS – CHASSIS
Chromium-molybdenum steel trellis frame
The lightweight trellis frame is constructed to ensure precise handling and deliver confidence in all conditions. By using high grade chromium molybdenum tubular steel, detailed feedback is transmitted to the rider through precisely engineered torsional rigidity and longitudinal flex. This guarantees advanced agility and stability, combined with perfect weight distribution and a tight turning circle, which is highly useful in urban environments.

The lightweight frame is produced in an ultra-modern production plant. The laser cut components are robot welded and hydro-formed ensuring flawless precision and consistent quality.
Precisely engineered torsional rigidity and longitudinal flex → detailed feedback for maximum rider confidence and comfort

  • Lightweight construction → excellent agility and handling

Aluminum swingarm
The pin jointed swingarm is made from lightweight aluminum using a gravity die-cast production process. The design offers impressive torsional rigidity and strength for advanced tractability and stability.

  • Lightweight and strong for advanced handling and comfort

Front Suspension
Produced by WP suspension, the USD 43 mm front forks deliver advanced performance and comfort in varying urban environments. Using a split damping function, compression and rebound can be adjusted effortlessly using the easy access clickers located on the top of the fork tube.
This allows the rider to personalize the ride characteristics for preference and varying conditions.

  • WP USD 43 mm forks → advanced performance and comfort
  • Easy access clicker dials → effortless damping changes

Rear Suspension
Connected via a linkage system, the WP monoshock delivers outstanding progression for an agile and comfortable ride. Fully adjustable for rebound and compression, the shock can be tailored to suite a variety of urban conditions.

  • WP monoshock → completely adjustable for rebound and compression damping

Aluminum Triple Clamps & Handlebars
The forged triple clamps are a mark of the premium quality that comes as standard on the SVARTPILEN 701. Crafted using lightweight aluminum, the triple clamps are designed with a specific rigidity to ensure high levels of strength and reliability while also delivering advanced feedback and comfort to the rider.
Offroad style handlebars are mounted to the upper triple clamp using risers. The handlebars not only offer an upright riding position but are also key to the design and riding style of SVARTPILEN 701.

  • Precisely engineered flex → advanced comfort and feedback
  • Offroad type handlebar → Upright riding position

Bodywork/Split
The SVARTPILEN 701 uses a flat track inspired design, stripped to the essentials for a unique and authentic style. The bodywork ensures the perfect fit between rider and motorcycle and is highlighted with quality painted finishes.

Integrated into the bodywork is a key design feature, “the split”. This consists of a division running between the main frame and subframe. This unique detail, along with the flat track inspired side panel, further showcases Husqvarna´s pioneering design direction.

  • Bodywork → using the bare essentials
  • Split → pioneering design direction

Fuel tank
A focal point of the SVARTPILEN 701, the 3.2-gallon (12-litre) fuel tank is housed by a unique cover design distinguishing the tone of the SVARTPILEN style. Added to the design is a premium tank filler cap including machined Husqvarna insignia.

Seat
The low-profile seat fits sleekly into the overall design and is covered using a mixture of high quality materials that deliver superior comfort and durability.

Exhaust
Concealed within the framework, the exhaust system features a pre-silencer and final silencer layout. The exhaust system ensures the SVARTPILEN 701 meets strict emission regulations.

Wheels and tires
The lightweight 18” front and 17” rear cast alloy wheels ensure high levels of strength and durability with minimal unsprung weight. The Husqvarna logo is discreetly embedded into the wheel, highlighting the attention to details on the SVARTPILEN 701.

Fitted to the wheels are Pirelli MT60 RS tires – 110/80-18 front and 160/60-17 rear. The tires offer advanced grip and durability in a wide range of conditions while also giving the SVARTPILEN 701 a rugged urban look.

  • Lightweight but strong and reliable construction → minimum unsprung weight
  • Pirelli MT60 RS → Advanced grip and durability

Brakes
The highest standard of braking performance is delivered by the standard Brembo braking system. This features a four-piston calliper, Ø 320 mm floating disc at the front, and a single piston calliper, Ø 240 mm at the rear.

Additionally, the standard Bosch ABS system prevents wheel lock up under hard braking and can be fully de-activated for more advanced riders.

  • Brembo braking system → Highest standard braking performance
  • Bosch ABS → prevents wheel lock up under hard braking

Lights and number plate holder
Nestled into the front headlight mask, the premium LED headlight conveys an unmistakable look. Added to the component is a running light, which circles the circumference of the headlight making the SVARTPILEN 701 clearly visible in all conditions.

The LED tail light is integrated within the bodywork. This, together with the swingarm mounted license plate and turn signals, give the rear end a clean, uninterrupted look.

FEATURES AND BENEFITS – ENGINE
Engine
The 692.7cc, single overhead cam, liquid cooled, single-cylinder engine features the latest technology in terms of design and electronics. Its power output (peaking at 8,500 RPM) and torque (peaking at 6,750 RPM) leave riders in no doubt of the performance potential of this single-cylinder masterpiece. The extremely lightweight engine weighs only 95.7 lbs (43.4 kg) without oil but including all components such as electric start, throttle body, clutch and coolant lines. Reliability, durability and efficiency are guaranteed by technical solutions such as active crankcase evacuation and forced lubrication. This reduces oil friction and pump losses and contributes to the long 6,214-mile (10,000 km) service intervals and extremely low fuel consumption – lowering the cost of ownership of this class-leading single-cylinder power plant.

  • Performance → class-leading power and torque
  • Long service intervals and low fuel consumption → low cost of ownership
  • Cutting edge ride-by-wire electronics → class-leading single cylinder technology and performance


Cylinder head
A smooth power delivery is guaranteed thanks to the state-of-the-art four-valve cylinder head and twin spark ignition. The single overhead camshaft acts directly on the 42 mm intake valves via finger followers while the 34 mm exhaust valves are actuated by a rocker arm that delivers exact valve timing at higher engine speeds. Additionally, a counter balancer shaft is integrated to reduce vibration for a smooth and comfortable ride.

  • Single overhead cam → compact cylinder head design, low friction, lightweight and cost efficient
  • Double spark plugs → smooth engine behaviour, better emissions and fuel consumption
  • Counter balancer shaft → reduced vibration

Crankshaft, conrod and piston

The crankshaft features an 80 mm stroke and runs on a roller bearing main bearing to ensure long service intervals and reliability. To increase comfort and reduce vibrations a second counter balancer shaft is added, reducing inertia forces for a smoother ride.

The plain bearing type connecting rod is connected to the large bore 105 mm piston through a DLC (diamond like carbon) coated piston pin. This, along with the aluminum and silicon alloy piston material, makes for a high strength and wear-resistant combination reliable even at the 9000 RPM limit.

  • Large bore and short stroke → 105 mm/80 mm
  • Forged aluminum and silicone alloy piston → high performance and light weight
  • Minimal oscillating mass → lower vibrations

Ride-by-wire throttle

The Keihin electronic fuel injection features a 50 mm throttle body that has no mechanical linkage to the throttle grip. As the rider twists the throttle open or closed, the throttle valve is electronically controlled by the engine management system (EMS) that continuously compares engine parameters with data from sensors and adjusts the throttle valve accordingly, resulting in perfect power delivery and throttle response. Additionally, an intake resonator also improves the intake charge movement and as a result improves throttle response and ride-ability specifically at small throttle valve positions.

  • Electronically controlled throttle → perfect power delivery and throttle response
  • Intake resonator → improved throttle response from low RPM

Slipper clutch

The APTC (Adler Power Torque Control) slipper clutch by Adler allows for greater stability entering and exiting corners by maximising rear wheel grip under hard acceleration. In addition, it prevents rear wheel hopping when braking hard into a turn, for maximum control and smooth down-shifting. The Magura hydraulic system guarantees perfect clutch action.

  • Slipper clutch → maximum control under hard acceleration, braking and down-shifting
  • Magura hydraulic system → perfect clutch action

Gearbox
A 6-speed gearbox ensures smooth and precise shifting, giving riders perfect control and confidence in all conditions.
For added convenience in urban environments, the gearbox is linked to an easy shift sensor, which allows the rider to make seamless up and down shifts without the use of the clutch. The sensor works by relaying the moment the rider actuates the gear lever to the ECU, which in turn matches engine parameters to allow a simple gear change at any RPM or engine load.

2019 SVARTPILEN 701 Technical Specifications
